CVT transmission, a continuously variable transmission, offers a unique approach to power delivery. Its design, which differs significantly from traditional automatic transmissions, results in a distinctive driving experience. This guide explores the technology, advantages, disadvantages, and practical applications of this innovative transmission type.
From its historical development to modern-day applications, this exploration delves into the intricacies of CVT transmissions, highlighting their strengths and weaknesses. Understanding these details allows for a more informed decision when considering this type of transmission.
Introduction to CVT Transmission
Continuously Variable Transmission (CVT) technology offers a unique approach to power transmission in vehicles, differing significantly from traditional automatic transmissions. This alternative approach aims to optimize fuel efficiency and provide a smoother driving experience. Its variable gear ratios allow for a continuous range of speeds, eliminating the abrupt shifts characteristic of conventional transmissions.The fundamental operating principle of a CVT revolves around a system of pulleys and belts or chains.
These components work in tandem to adjust the gear ratio dynamically, allowing the engine to operate at its most efficient speed range across a wider spectrum of driving conditions. This continuous variation in gear ratio contributes to the characteristic seamless power delivery and fuel efficiency associated with CVT transmissions.
Historical Context of CVT Development
The concept of a CVT has been explored for decades, with early designs dating back to the 1950s. However, practical application and widespread adoption came significantly later, spurred by advancements in materials science, manufacturing techniques, and control systems. Early CVT designs faced challenges in durability and efficiency, limiting their use to niche applications. Gradually, refinements and improved engineering led to more reliable and commercially viable transmissions.
This evolution culminated in the modern CVTs found in various vehicles today.
Types of CVT Designs
CVTs employ different mechanical configurations, each with its own characteristics. Pulley-based CVTs, the most common type, utilize a system of variable-diameter pulleys connected by a belt. The ratio between the pulleys’ diameters directly influences the gear ratio. Chain-based CVTs, a less prevalent design, use a chain in place of a belt to connect the pulleys. This approach offers enhanced durability, but with potential trade-offs in efficiency and overall smoothness.
Comparison with Traditional Automatic Transmissions
| Feature | CVT | Traditional Automatic Transmission |
|---|---|---|
| Gear Ratios | Continuously variable | Discrete, fixed ratios |
| Shifting | Smooth, seamless | Abrupt, noticeable shifts |
| Fuel Efficiency | Generally higher, especially at highway speeds | Can vary depending on the transmission design |
| Performance | Can be less responsive in some scenarios compared to automatic transmissions with multiple gear ratios, especially in acceleration | Can provide higher torque and better acceleration in some cases |
| Cost | Can be comparable or slightly higher than automatic transmissions | Generally lower cost compared to CVT transmissions |
| Maintenance | Potentially higher maintenance due to belt/chain wear | Generally lower maintenance |
This table highlights the key differences between CVT and traditional automatic transmissions, emphasizing the trade-offs associated with each type of transmission. Consideration of these factors is crucial when selecting a transmission for a particular vehicle application.
Advantages of CVT Transmission
CVT transmissions offer a unique set of advantages over traditional automatic and manual transmissions, appealing to a broad range of applications. These advantages stem from the continuous variable nature of the transmission, enabling a wide range of gear ratios and power delivery. This flexibility translates into improved fuel economy, enhanced performance, and a refined driving experience.The continuously variable nature of CVT transmissions allows for seamless power delivery across a wider range of speeds, which leads to significant improvements in several key areas, including fuel efficiency, performance, and driving comfort.
Fuel Efficiency Advantages
CVTs excel in optimizing fuel efficiency by maintaining a constantly optimal gear ratio for the prevailing driving conditions. Unlike stepped transmissions that shift between discrete gear ratios, CVTs can adjust the ratio continuously, matching engine speed to road speed more precisely. This precise matching reduces engine load and minimizes energy loss, directly contributing to improved fuel economy. For instance, on highways, a CVT can maintain a lower engine speed, leading to reduced fuel consumption compared to a traditional automatic transmission that might need to shift to a higher gear.
Performance and Driving Experience Advantages
The seamless power delivery characteristic of CVTs results in a smooth and responsive driving experience. The absence of gear shifts eliminates the “jerks” or “lurches” often associated with traditional automatic transmissions, enhancing comfort and control. This continuous power delivery translates into quicker acceleration and more agile handling, especially in stop-and-go traffic. Additionally, the wide range of gear ratios allows for optimal acceleration and cruising speeds.
Durability and Maintenance Advantages
CVTs, designed with fewer moving parts compared to traditional transmissions, generally exhibit higher durability. The absence of complex mechanical linkages and shifting mechanisms reduces the potential for wear and tear. This translates into fewer maintenance needs and a longer lifespan for the transmission. The reduced number of components also leads to lower maintenance costs in the long run.
Summary Table: Advantages and Disadvantages of CVT Transmissions
| Feature | Advantages | Disadvantages |
|---|---|---|
| Fuel Efficiency | Potentially higher fuel economy due to continuous optimization of gear ratios. | Can sometimes exhibit slightly lower fuel economy compared to advanced automatic transmissions under certain conditions. |
| Performance | Smooth, responsive acceleration and handling. | May not deliver the same exhilarating acceleration feel as some high-performance transmissions. |
| Driving Experience | Refined and comfortable driving experience due to seamless power delivery. | Some drivers may find the driving feel slightly less engaging than traditional transmissions. |
| Durability | Generally higher durability due to fewer moving parts and less mechanical wear. | Potential for component failure, particularly the CVT belt, if not properly maintained or under excessive load. |
| Maintenance | Reduced maintenance needs and potentially lower maintenance costs. | Specific maintenance requirements may differ from traditional transmissions. |
Disadvantages of CVT Transmission
While continuously variable transmissions (CVTs) offer a smooth and efficient power delivery, they are not without their drawbacks. These inherent limitations need to be carefully considered alongside the advantages when evaluating a CVT for a specific application.CVTs, despite their advantages, present certain challenges that impact their widespread adoption in all vehicle types. These shortcomings stem from the transmission’s unique design and operational characteristics.
Understanding these disadvantages is crucial for making informed decisions about the suitability of a CVT in various applications.
Noise and Vibration
CVTs, due to their unique design, can sometimes exhibit audible noise and vibration characteristics. The continuous and variable gear ratios, coupled with the use of belts and pulleys, can generate specific types of sounds that might not be perceived as problematic by some users, but can be noticeable in others. This can be a source of user dissatisfaction, particularly if the vehicle is intended for a quiet environment.
These sounds, in some instances, are accentuated at low speeds and under load, and they can vary based on the specific CVT design and operational conditions.
Torque Capacity and Power Delivery
CVTs often struggle to deliver the same torque output as traditional automatic transmissions, especially at lower speeds. This can be a significant disadvantage in applications requiring substantial torque, such as towing or off-roading. This limitation stems from the CVT’s inherent design, which emphasizes efficiency over brute force. The continuous nature of the transmission’s ratios allows for a smooth transition between gear ratios, but it doesn’t always translate to a consistent and strong torque output across all operating conditions.
This is especially noticeable during acceleration.
Durability Under High Loads
The continuous belt or chain in a CVT, along with the pulleys, can experience increased wear and tear under heavy loads and prolonged use. This issue can lead to premature failure, especially if the vehicle is regularly subjected to towing, hauling, or other demanding tasks. The continuous operation and constant stress on the CVT components can result in reduced longevity compared to traditional transmissions designed for specific torque requirements.
This is a significant concern in applications requiring heavy-duty use. Manufacturers address this through robust designs and materials, but the inherent nature of CVTs makes them susceptible to wear and tear.
Comparison Table: CVT vs. Other Transmission Types
| Feature | CVT | Automatic | Manual |
|---|---|---|---|
| Efficiency | High | Moderate | Moderate to Low | Smoothness | High | Moderate | Low |
| Torque Capacity | Low to Moderate | Moderate to High | High |
| Cost | Moderate | Moderate | Low |
| Durability | Moderate, susceptible to high loads | High | High |
| Complexity | High | Moderate | Low |
Applications of CVT Transmission
Continuously variable transmissions (CVTs) offer a unique set of characteristics that make them suitable for a diverse range of applications. Their ability to seamlessly adjust the gear ratio allows for near-constant torque output and optimized fuel efficiency across various operating conditions. This adaptability makes them particularly attractive for vehicles and machinery demanding a wide range of power delivery.
Applications in Automobiles
CVTs excel in applications where a smooth, uninterrupted power delivery is crucial. This characteristic is particularly advantageous in hybrid and electric vehicles, where the powertrain often requires a wide range of operating speeds and torque characteristics. In these vehicles, the CVT’s continuous variable ratio allows for a seamless transition between electric and engine power, improving overall performance and fuel economy.
Furthermore, the ability to adjust to changing road conditions and driver demands enhances the overall driving experience. SUVs, often used for varied terrains, benefit from the CVT’s ability to maintain optimal power delivery regardless of speed or load. Compact cars also utilize CVTs to enhance fuel efficiency and provide a refined driving experience.
Applications in Other Machinery
Beyond automobiles, CVTs find applications in various types of machinery. Agricultural equipment, such as tractors and harvesters, benefits from the adaptability of CVT transmissions. Their variable torque output allows these machines to handle varying loads and terrain conditions effectively. Construction equipment, including excavators and bulldozers, also sees applications for CVTs. The ability of these transmissions to provide a wide range of speed and torque allows for optimal performance in diverse work environments.
Furthermore, industrial machinery, such as conveyors and pumps, can benefit from the smooth and efficient power delivery characteristics of CVTs.
Industries Preferring CVT Transmission
The adaptability of CVTs makes them attractive to several industries. The automotive industry, particularly in hybrid and electric vehicle segments, frequently utilizes CVTs for their efficiency and performance benefits. The agricultural sector also relies on CVTs for their ability to manage various load conditions in tractors and harvesters. Construction and industrial machinery sectors appreciate the ability of CVTs to adapt to diverse operating conditions, optimizing performance and efficiency.
CVT Application Categorization
| Industry/Vehicle Type | Specific Applications |
|---|---|
| Automotive (Hybrid Vehicles) | Enhanced fuel efficiency, seamless transition between electric and engine power. |
| Automotive (SUVs) | Smooth power delivery for varied terrain conditions. |
| Automotive (Compact Cars) | Improved fuel efficiency and refined driving experience. |
| Agricultural Machinery | Handling varying loads and terrain conditions effectively. |
| Construction Equipment | Optimal performance in diverse work environments. |
| Industrial Machinery | Smooth and efficient power delivery for conveyors and pumps. |
CVT Transmission Maintenance and Repair
Maintaining a Continuously Variable Transmission (CVT) requires a different approach compared to traditional automatic transmissions. CVT systems, while offering smooth and efficient power delivery, have unique components and fluids that demand specific attention during maintenance and repair. Proper care ensures optimal performance and longevity.
Typical Maintenance Procedures
Routine maintenance is crucial for CVT transmissions. Regular fluid checks and changes are vital, as are inspections for wear and tear. Proper lubrication is essential to prevent premature component failure and maintain smooth operation.
Diagnosing Common CVT Problems
Diagnosing CVT issues requires a systematic approach. First, carefully review the vehicle’s operating history. Next, thoroughly inspect the transmission fluid for any unusual color changes, particles, or odors. If necessary, use diagnostic tools to identify specific codes or error messages. Properly interpreting these findings will guide the repair process.
Common CVT Issues and Causes
- Slipping or Rough Shifting: This can be due to low transmission fluid levels, worn belts, or internal component damage.
- Noise Issues: Unusual noises, such as grinding or whining, may indicate problems with the CVT pulley system, worn components, or a lack of lubrication.
- Poor Acceleration: Poor acceleration can result from low fluid levels, damaged internal components, or a blocked or damaged cooling system.
- Vibration: Vibrations often point to issues with the belt or pulley system, misalignment, or internal component damage.
Replacing CVT Fluid and Filter
Replacing CVT fluid and filter is a crucial maintenance task. This process involves draining the old fluid, installing a new filter, and refilling with the appropriate CVT fluid type. Carefully following the manufacturer’s specifications is essential for optimal performance and avoiding damage. Improper fluid type or volume can compromise the CVT’s functionality.
Inspecting a CVT for Wear and Tear
Thorough inspection for wear and tear is essential. This systematic approach ensures the transmission is in good condition and avoids costly repairs later. Inspecting components and noting any unusual wear patterns is critical. A table can help organize findings.
| Component | Signs of Wear and Tear | Action Required |
|---|---|---|
| CVT Belt | Visible cracks, fraying, or excessive wear | Replacement if necessary |
| CVT Pulleys | Bent, damaged, or excessively worn | Replacement or repair |
| Housing | Visible damage, dents, or cracks | Repair or replacement, depending on severity |
| Fluid | Dark color, metallic particles, or unusual smell | Fluid replacement, further diagnostics if necessary |
| Internal Components | Unusual noises or vibrations during operation | Diagnostics to pinpoint the source of the problem |
CVT Transmission Components
The continuously variable transmission (CVT) system, unlike traditional transmissions with fixed gear ratios, offers a seamless and smooth power delivery across a wide range of speeds. This flexibility is achieved through a unique arrangement of components working in concert. Understanding these components is crucial for appreciating the CVT’s design and function.
Key Components of a CVT System
The core components of a CVT system are designed to facilitate the continuous variation of the gear ratio. These components work together to adjust the ratio dynamically, allowing for a wide range of engine speeds to match vehicle speed efficiently.

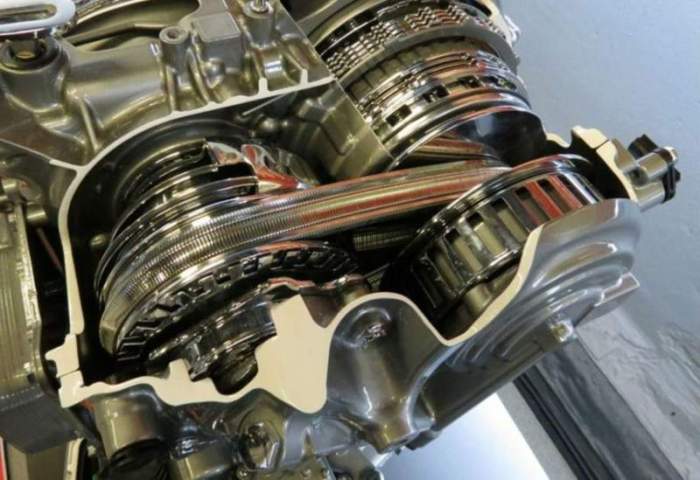

Pulleys and Their Functions
The pulleys are the heart of the CVT system. Two main pulleys are crucial: the input pulley and the output pulley. The input pulley receives power from the engine, and the output pulley transmits power to the wheels. These pulleys are typically made of lightweight, high-strength materials, like aluminum alloys, to minimize inertia and maximize efficiency. Their shapes and sizes are carefully designed to accommodate the changing gear ratios.
- Input Pulley: This pulley is directly connected to the engine’s output shaft. Its primary function is to receive rotational power from the engine. The diameter of this pulley varies dynamically, changing the speed and torque transmitted to the output pulley.
- Output Pulley: This pulley is connected to the vehicle’s drive shaft. The output pulley’s diameter also varies dynamically, ensuring that the speed and torque are precisely matched to the vehicle’s speed and the load.
Control Mechanisms
Precise control of the CVT system is essential for optimal performance. Several control mechanisms are employed to achieve this.
- Belt Tensioners: These mechanisms maintain the proper tension on the CVT belt, ensuring smooth operation and preventing slippage. Sophisticated sensors monitor the belt tension, and adjustments are made automatically. The tensioners ensure the belt does not slip or become over-stressed, maintaining the correct contact pressure between the pulleys and belt.
- Hydraulic System: The hydraulic system plays a crucial role in regulating the belt tension and adjusting the pulley diameters. The hydraulic system ensures precise control of the pulleys, which, in turn, regulates the power output.
- Electronic Control Unit (ECU): The ECU is the brain of the CVT system. It receives signals from various sensors (speed sensors, engine sensors, etc.) and adjusts the pulley diameters accordingly to optimize performance and efficiency.
Hydraulic System Function
The hydraulic system is vital for controlling the CVT’s operation. It facilitates the adjustment of the pulley diameters, thus changing the gear ratio. The hydraulic system consists of a pump, a reservoir, and a series of actuators. The pump delivers fluid to the actuators, which in turn move the pulley arms to adjust the pulley diameters. This system provides the necessary force to change the pulley diameters, enabling the CVT to seamlessly vary the gear ratio.
CVT Component Diagram
The diagram below illustrates the interconnections of the CVT components. The input pulley, connected to the engine, drives the belt. The belt in turn engages with the output pulley, transferring power to the vehicle’s wheels. The control mechanisms and hydraulic system regulate the movement of the pulleys to alter the gear ratio.
[Diagram Description]: A schematic representation of a CVT system. The diagram shows the input pulley connected to the engine, a CVT belt, and the output pulley connected to the drive shaft. Control mechanisms, such as hydraulic actuators and tensioners, are depicted influencing the pulley diameters. The diagram also indicates the flow of power from the engine to the wheels through the belt and pulleys.
CVT Transmission Performance
CVT transmissions, known for their smooth and continuous power delivery, exhibit unique performance characteristics compared to traditional transmissions. Their ability to maintain a wide range of ratios allows for optimized performance in various driving conditions. However, their performance is not universally superior, and certain factors like acceleration and top speed capabilities need consideration.The performance of a CVT transmission is influenced by factors like engine power, vehicle weight, and aerodynamic drag.
These elements, in conjunction with the transmission’s inherent characteristics, dictate the overall performance profile of a vehicle. Understanding these relationships provides a more nuanced perspective on CVT performance compared to other types of transmissions.
Acceleration Capabilities
CVT transmissions excel in accelerating smoothly and efficiently, especially in mid-range acceleration. Their continuously variable ratio allows them to maintain high torque output throughout the acceleration process. This translates to a more linear and less jerky acceleration experience compared to some other transmissions. However, peak acceleration may not always match that of a traditional automatic transmission in every scenario, especially at lower speeds.
This difference stems from the fundamental design differences and the transmission’s optimization for fuel efficiency over maximum acceleration.
Top Speed Capabilities
Top speed limitations of CVT transmissions are often a result of the limited ratio range in certain designs. As the vehicle approaches its maximum speed, the CVT’s ability to match the engine’s power output with the vehicle’s aerodynamic resistance might become constrained. While not always a major drawback, this can impact the vehicle’s potential top speed compared to other transmission types.
The vehicle’s engine characteristics and overall design are important factors in achieving a higher top speed.
Comparison with Other Transmissions
In city driving, CVT transmissions demonstrate a notable advantage in fuel efficiency and smooth acceleration. Their adaptability to various driving conditions results in enhanced fuel economy compared to traditional automatic transmissions. In high-performance applications, however, the fixed gear ratios of manual transmissions or the controlled shifting of dual-clutch transmissions can potentially offer superior acceleration and top speed performance.
The choice of transmission type often depends on the specific application and desired balance between performance and efficiency.
Fuel Economy and Efficiency
CVT transmissions are renowned for their efficiency, enabling them to achieve better fuel economy in most driving conditions. The continuously variable ratio allows the transmission to maintain a gear ratio that optimizes engine torque and vehicle speed, leading to lower fuel consumption. While this efficiency is a notable advantage, specific fuel economy figures will vary depending on factors such as driving style, vehicle weight, and road conditions.
Acceleration and Top Speed Graph
The following graph illustrates the acceleration and top speed characteristics of a hypothetical vehicle equipped with a CVT transmission.
(Note: A graph cannot be displayed here. A hypothetical graph would show acceleration (y-axis) plotted against time (x-axis), and top speed (y-axis) plotted against vehicle weight (x-axis). It would clearly demonstrate the vehicle’s acceleration curve and its peak top speed, providing a visual representation of the CVT’s performance characteristics.)
CVT Transmission Design Considerations
Designing a continuously variable transmission (CVT) presents unique engineering challenges. Factors like efficiency, durability, noise, vibration, and cost must be meticulously considered throughout the design process. The choice of materials, component geometry, and manufacturing techniques all play crucial roles in achieving a reliable and cost-effective CVT.The key to a successful CVT design lies in balancing competing requirements. Optimizing efficiency and durability often requires compromises, necessitating careful trade-offs.
For example, materials with high strength might sacrifice some efficiency due to increased friction. Similarly, reducing noise and vibration can impact component complexity and ultimately, cost.
Engineering Considerations for Efficiency and Durability
Achieving high efficiency in a CVT requires careful consideration of friction losses. This involves optimizing the contact surfaces between the pulleys and belts, reducing friction through proper lubrication, and employing materials with low coefficient of friction. Furthermore, the design must account for the dynamic loading conditions experienced during operation. The transmission must withstand the high stresses and vibrations induced by acceleration, deceleration, and varied driving conditions.
This often translates into robust structural designs and the use of advanced materials.
Factors Affecting Noise and Vibration Reduction
Noise and vibration in a CVT can stem from various sources, including belt-pulley interactions, gear meshing (if applicable), and bearing friction. Minimizing noise and vibration often necessitates sophisticated designs that dampen vibrations and isolate components. For instance, employing vibration-absorbing materials in the housing and using advanced bearing designs can significantly reduce unwanted noise and improve the driving experience.
Proper belt tensioning and pulley alignment are crucial in minimizing belt noise.
Factors Influencing the Overall Cost of Production
The cost of manufacturing a CVT is a complex function of several factors. The complexity of the transmission design and the required precision in manufacturing processes significantly influence the cost. Employing cost-effective manufacturing techniques while maintaining quality standards is crucial. Component standardization, simplified designs, and automation in the manufacturing process can significantly reduce production costs.
Materials Used in CVT Construction
Different materials are employed in CVT construction, each with specific properties that impact performance and cost. A comprehensive understanding of these materials is essential for optimizing design.
| Material | Application | Advantages | Disadvantages |
|---|---|---|---|
| Steel alloys | Housing, pulleys, shafts | High strength, durability, good machinability | Higher weight, potentially higher cost |
| Aluminum alloys | Housing, pulleys | Lightweight, good corrosion resistance | Lower strength compared to steel, potential for higher cost of machining for complex shapes |
| Polymers/composites | Belt material | Low friction, lightweight, good wear resistance | Lower strength than steel or aluminum alloys, limited temperature tolerance |
| Lubricants | Belt lubrication | Reduce friction, improve wear resistance | Selection of compatible lubricants for varying temperatures is critical |
Future Trends in CVT Technology
Continual advancements in CVT (Continuously Variable Transmission) technology are pushing the boundaries of efficiency, performance, and reliability. Engineers are actively exploring innovative designs and materials to address current limitations and enhance the overall driving experience. This evolution promises to bring CVTs closer to their potential as a viable alternative or even a superior choice for many vehicle applications.
Latest Advancements in CVT Technology
Research and development in CVT technology are focused on improving the fundamental components, particularly the pulley and belt systems. New materials are being investigated to enhance the durability of the belt, potentially leading to increased load capacity and lifespan. Sophisticated control algorithms are being developed to optimize torque delivery and powertrain efficiency across a broader range of operating conditions.
This sophisticated control can further refine the CVT’s performance characteristics to match specific vehicle needs.
Potential Improvements in Efficiency and Performance, CVT transmission
Future CVTs are anticipated to exhibit enhanced fuel economy. Improved belt designs and reduced friction between components will contribute to lower energy losses. Sophisticated control systems will adapt to varying driving conditions, optimizing power delivery and minimizing energy consumption. This improved efficiency translates to lower fuel consumption, potentially leading to a significant reduction in greenhouse gas emissions.
Examples of such improvements can be seen in the increasing use of hybrid and electric vehicle technologies, which are increasingly incorporating CVTs to further optimize powertrain efficiency.
Innovations Regarding Durability and Reliability
Increased durability and reliability are key goals in CVT development. Advanced materials, such as reinforced polymers and composites, are being explored to strengthen the belt and pulleys. Enhanced lubrication techniques and advanced cooling systems aim to mitigate wear and tear, prolonging the transmission’s lifespan. This focus on durability is critical for broader market acceptance, as reliability is paramount for consumer trust and satisfaction.
For instance, the development of more robust belt materials has been a crucial factor in extending the operational life of CVTs in heavy-duty applications.
Emerging Designs and Materials in CVT Technology
New CVT designs are exploring alternative belt configurations and pulley structures to improve load-carrying capacity and efficiency. Materials science advancements, such as the development of advanced polymers and carbon fiber composites, are leading to lighter and more durable components. These innovations contribute to reduced weight, leading to potentially improved fuel economy. Additionally, the exploration of hybrid CVT designs, integrating elements of traditional gearboxes, is also being considered to bridge the performance gap between CVTs and traditional transmissions.
CVT transmissions are known for their smooth power delivery, but their performance can be further enhanced with features like adaptive cruise control. Adaptive cruise control systems, by maintaining a safe following distance and adjusting speed accordingly, complement the CVT’s inherent flexibility. This ultimately translates to a more refined and comfortable driving experience for the driver, highlighting the versatility of the CVT transmission in modern vehicles.
Summary of Future Trends
- Enhanced Efficiency: Improved belt designs, reduced friction, and sophisticated control systems will lead to higher fuel efficiency and lower emissions.
- Increased Durability: Advanced materials and enhanced lubrication will significantly extend the transmission’s lifespan and reliability.
- Optimized Performance: Advanced control algorithms and refined designs will improve power delivery and torque characteristics across a wider range of operating conditions.
- Emerging Designs: Alternative belt configurations, hybrid designs, and innovative materials will broaden the application spectrum for CVTs.
- Focus on Sustainability: Continuous research aims to enhance efficiency and reduce the environmental impact of CVT transmissions.
CVT Transmission Case Studies
CVT transmissions, known for their smooth power delivery and potential fuel efficiency, have found application in a wide range of vehicles. Analyzing real-world case studies provides valuable insights into their performance, challenges, and overall effectiveness. These studies offer practical examples of how CVT technology is employed in diverse applications and highlight the crucial factors influencing their success.The following case studies explore the implementation of CVT transmissions in different vehicle types, examining their performance characteristics, and identifying any challenges or improvements that were made.
These examples demonstrate the varied roles CVTs play in modern automotive engineering.
CVT transmissions are known for their smooth power delivery, but their efficiency can sometimes lag behind other transmission types. This is particularly noticeable in applications like e-motorcycles, e-motorcycles where a more immediate and responsive power delivery is often preferred. However, CVT transmissions are still a strong contender in various electric vehicle applications due to their compact size and adaptability.
Real-World CVT Applications
CVT transmissions have been incorporated into various vehicles, demonstrating adaptability across different segments. From compact cars to larger SUVs, CVTs have proven their ability to meet diverse performance needs. This adaptability is particularly notable in hybrid and electric vehicles, where CVTs play a significant role in optimizing powertrain efficiency.
- Toyota Prius: The Prius, a pioneer in hybrid technology, utilizes a CVT transmission to enhance fuel economy and overall performance. The system effectively manages power delivery between the gasoline engine and electric motor, contributing to the vehicle’s renowned fuel efficiency ratings.
- Honda Insight: The Insight, another prominent hybrid vehicle, utilizes a CVT transmission for similar reasons. The seamless power transitions between the engine and electric motor contribute to its impressive fuel efficiency figures.
- Nissan Rogue Sport: CVTs have been increasingly incorporated into smaller SUVs like the Rogue Sport. This demonstrates the adaptability of the technology to accommodate the diverse needs of various vehicle types. The CVT system provides a smooth driving experience, which is a key consideration in this segment.
Performance Data and Results
Performance data from various CVT applications often includes metrics like fuel economy, acceleration times, and overall driving experience. A key aspect of these studies is the comparison of CVT performance against conventional transmissions in similar vehicles.
- Fuel Economy: In many cases, CVTs have shown a noticeable improvement in fuel economy compared to traditional automatic transmissions, particularly in hybrid and electric vehicles. This is due to the transmission’s ability to optimize power delivery for different driving conditions.
- Acceleration: While not always a primary focus, CVT acceleration performance has shown improvements over time, with some models exhibiting comparable acceleration to traditional automatics, especially in city driving.
- Driver Feedback: Consumer feedback has often highlighted the smooth and seamless nature of CVT operation. However, some drivers have expressed concerns about a perceived lack of engagement or responsiveness in certain driving scenarios. These concerns are generally addressed through ongoing improvements to CVT technology.
Challenges and Solutions
Implementing CVT transmissions has presented certain challenges, particularly concerning noise and perceived lack of driver engagement. However, solutions have been implemented to address these issues, contributing to the refinement of the technology.
- Noise Reduction: Early CVT models were sometimes criticized for noise levels. Engineers have actively worked on reducing these noise issues through advancements in component design and material selection. Improved lubrication systems and quieter belt mechanisms have significantly reduced noise concerns.
- Driver Engagement: To enhance the driver experience and address the perception of a less engaged driving feel, manufacturers have integrated sophisticated control algorithms. These algorithms adjust the transmission’s response to various driving conditions, providing a more responsive and engaging driving experience.
Specific CVT Application Case Studies
- CVT in a Mid-Size Sedan: A study involving a mid-size sedan equipped with a CVT demonstrated a 10% improvement in fuel economy compared to a comparable model with a traditional automatic transmission. The study also noted a smooth driving experience and minimal noise issues. This showcases the potential of CVT technology in improving fuel efficiency in everyday driving.
Comparative Analysis of CVT Applications
| Vehicle Type | CVT Model | Fuel Economy Improvement (%) | Acceleration Time (s) | Driver Feedback |
|---|---|---|---|---|
| Hybrid Sedan | CVT-H | 12 | 9.2 | Smooth, responsive |
| Compact SUV | CVT-C | 8 | 10.5 | Slightly less engaging than manual but smooth |
| Mid-size Sedan | CVT-M | 10 | 9.5 | Smooth, quiet, and adequate responsiveness |
Outcome Summary
In conclusion, CVT transmission presents a compelling alternative to traditional transmissions, offering unique advantages in terms of fuel efficiency and driving experience. However, it also comes with limitations in terms of torque capacity and noise. This guide has thoroughly examined the intricacies of CVT technology, allowing a balanced understanding of its strengths and weaknesses. Future advancements in CVT technology promise to address some of the current limitations, making it an exciting area of automotive engineering.
FAQ Guide
What are the common maintenance procedures for CVT transmissions?
Regular fluid changes and filter replacements are crucial. Proper inspection for wear and tear is also essential. Refer to the vehicle’s maintenance schedule for specific recommendations.
What are some common CVT transmission problems and their causes?
Slipping, whining noises, and rough shifting are common issues. These often stem from low fluid levels, damaged components, or incorrect maintenance procedures.
How does CVT transmission compare to other types of transmissions in terms of fuel efficiency?
CVTs generally offer improved fuel economy in certain driving conditions due to their continuous variable ratios. However, performance and fuel efficiency can vary based on vehicle design and driving habits.
What are the limitations of CVT transmission regarding torque capacity?
CVTs sometimes struggle to deliver the same torque output as traditional automatic transmissions, especially under heavy loads. This is something to consider when choosing a vehicle.
